INA148 200V Common-Mode Voltage DIFFERENCE AMPLIFIER

The INA148 is a precision, low-power, unity-gain difference amplifier with a high common-mode input voltage range. It consists of a monolithic precision bipolar op amp with a thin-film resistor network. The on-chip resistors are laser trimmed for an accurate 1V/V differential gain and high common-mo.

INA148 Features

* q HIGH COMMON-MODE VOLTAGE: +75V at VS = +5V ±200V at VS = ±15V q FIXED DIFFERENTIAL GAIN = 1V/V q LOW QUIESCENT CURRENT: 260µA q WIDE SUPPLY RANGE: Single Supply: 2.7V to 36V Dual Supplies: ±1.35V to ±18V q LOW GAIN ERROR: 0.075% max q LOW NONLINEARITY: 0.002% max q HIGH CMR: 86dB q SO-8 PACKAGE D

INA148_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: INA148, INA148_Burr. Please refer to the document for exact specifications by model.

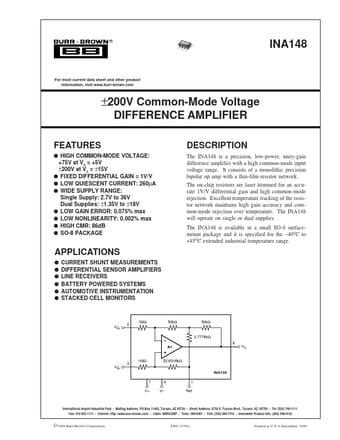

INA148 Datasheet Preview Page 2 INA148 Datasheet Preview Page 3

Datasheet Details

Part number:

INA148, INA148_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

123.99 KB

Description:

200v common-mode voltage difference amplifier.

Note:

This datasheet PDF includes multiple part numbers: INA148, INA148_Burr.
Please refer to the document for exact specifications by model.
