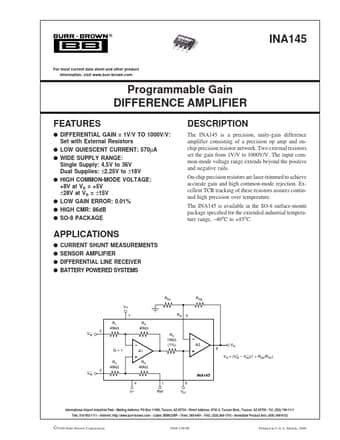

INA145 Datasheet, Amplifier, Burr-Brown Corporation

INA145 Features

• Amplifier q DIFFERENTIAL GAIN = 1V/V TO 1000V/V: Set with External Resistors q LOW QUIESCENT CURRENT: 570µA q WIDE SUPPLY RANGE: Single Supply: 4.5V to 36V Dual Supplies: ±2.25V to ±18V q HIGH CO

PDF File Details

Part number:

INA145

Manufacturer:

Burr-Brown Corporation

File Size:

127.36kb

Download:

📄 Datasheet

Description:

Programmable gain difference amplifier. The INA145 is a precision, unity-gain difference amplifier consisting of a precision op amp and onchip precision resistor network. Tw

INA145 Application

• Applications q CURRENT SHUNT MEASUREMENTS q SENSOR AMPLIFIER q DIFFERENTIAL LINE RECEIVER q BATTERY POWERED SYSTEMS RG1 V+ 7 R1 40kΩ R2 40kΩ R5 10k
