ISO809

Isolated 16-Bit Sampling ANALOG-TO-DIGITAL CONVERTER

ISO809 Features

* q 100kHz SAMPLING RATE q 1500Vrms ISOLATION CONTINUOUS q 10µS CONVERSION TIME q 16-BIT SERIAL OUTPUT q SINGLE +5V SUPPLY q 28-PIN 0.6" PLASTIC DIP DESCRIPTION The ISO809 is a low-power isolated sampling ADC using state-of-the-art CMOS structures and high voltage capacitors. The ISO809 contains a co

ISO809 General Description

The ISO809 is a low-power isolated sampling ADC using state-of-the-art CMOS structures and high voltage capacitors. The ISO809 contains a complete 16-bit capacitor based SAR, ADC with S/H, clock, reference, µP interface, serial out and galvanic isolation. Laser-trimmed scaling resistors provide stan.

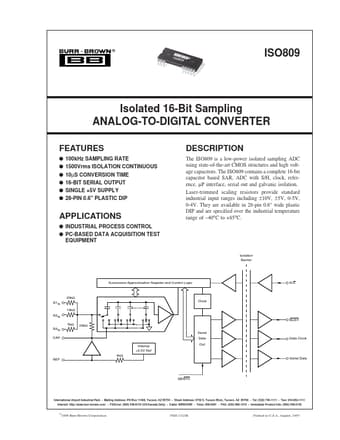

ISO809 Datasheet (111.02 KB)

Preview of ISO809 PDF

Datasheet Details

Part number:

ISO809

Manufacturer:

Burr-Brown Corporation

File Size:

111.02 KB

Description:

Isolated 16-bit sampling analog-to-digital converter.
