ISO8200AQ - octal high side smart power solid state relay

STMicroelectronics

📥 Download Datasheet

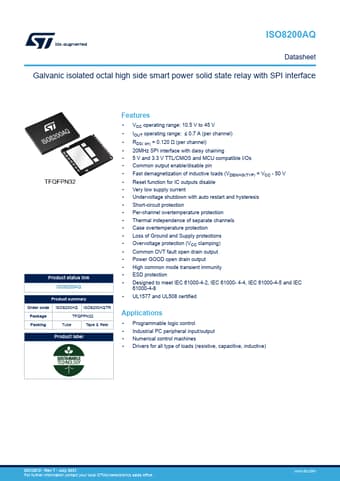

ISO8200AQ Datasheet Preview — Preview of ISO8200AQ PDF

Datasheet Details

Part number: ISO8200AQ
Manufacturer: STMicroelectronics ↗
File Size: 1.92 MB
Datasheet: ISO8200AQ-STMicroelectronics.pdf
Description: octal high side smart power solid state relay

ISO8200AQ Product details

Description

1 Description The ISO8200AQ is a galvanic isolated 8-channel driver featuring a very low supply current.It contains 2 independent galvanic isolated voltage domains (VCC and VDD for the Process and Control Logic stages, respectively).The IC is intended for driving any kind of load with one side connected to ground.The Control Logic Stage

Features

VCC operating range: 10.5 V to 45 V.
IOUT operating range: ≤ 0.7 A (per channel).
RDS( on) = 0.120 Ω (per channel).
20MHz SPI interface with daisy chaining.
5 V and 3.3 V TTL/CMOS and MCU compatible I/Os.
Common output enable/disable pin.
Fast demagnetization of inductive loads (VDEMAG(TYP) = VCC - 50 V.
Reset function for IC outputs disable.
Very low supply current.
Undervoltage shutdown with auto restart.
