ISO808A - Galvanic isolated octal high-side power solid state relay

STMicroelectronics

📥 Download Datasheet

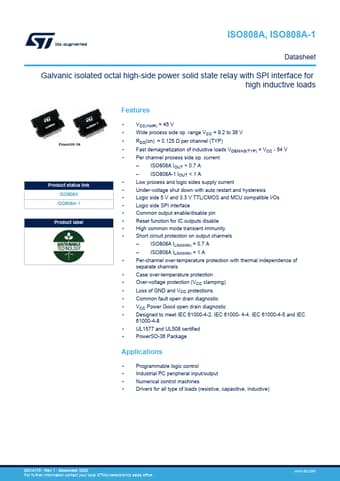

ISO808A Datasheet Preview — Preview of ISO808A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ISO808A
Manufacturer: STMicroelectronics ↗
File Size: 1.68 MB
Datasheet: ISO808A-STMicroelectronics.pdf
Description: Galvanic isolated octal high-side power solid state relay

ISO808A Product details

Description

The ISO808A, ISO808A-1, are galvanic isolated 8-channel drivers featuring a low supply current.

Features

VCC(AMR) = 45 V.
Wide process side op. range VCC = 9.2 to 36 V.
RDS(on) = 0.125 Ω per channel (TYP).
Fast demagnetization of inductive loads VDEMAG(TYP) = VCC - 54 V.
Per channel process side op. current.
ISO808A IOUT < 0.7 A.
ISO808A-1 IOUT < 1 A.
Low process and logic sides supply current.
Under-voltage shut down with auto restart and hysteresis.
Logic side 5 V and 3.3 V TTL/CMOS and MCU comp.
