ISO806 Datasheet, Converter, Burr-Brown

ISO806 Features

  • Converter q 1500Vrms ISOLATION CONTINUOUS q 25µS CONVERSION TIME q 12-BIT SERIAL OUTPUT q SINGLE +5V SUPPLY q 28-PIN 0.6" PLASTIC DIP DESCRIPTION The ISO806 is a low-power isolated sampling ADC

PDF File Details

Part number:

ISO806

Manufacturer:

Burr-Brown

File Size:

216.01kb

Download:

📄 Datasheet

Description:

Isolated 12-bit sampling analog-to-digital converter. The ISO806 is a low-power isolated sampling ADC using state-of-the-art CMOS structures and high voltage capacitors. The ISO806 contai

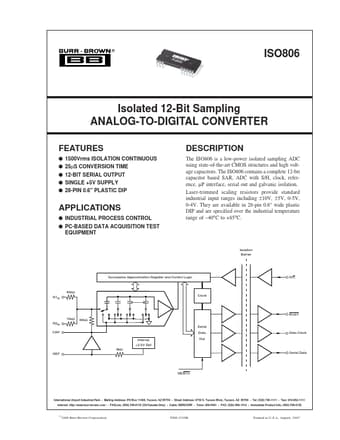

Datasheet Preview: ISO806 📥 Download PDF (216.01kb)
Page 2 of ISO806 Page 3 of ISO806

ISO806 Application

  • Applications q INDUSTRIAL PROCESS CONTROL q PC-BASED DATA ACQUISITION TEST EQUIPMENT Isolation Barrier Successive Approximation Register and Contr
