ISO808-1

Galvanic isolated octal high-side power solid state relay

ISO808-1 Features

* VCC(AMR) = 45 V

* Wide process side op. range VCC = 9.2 to 36 V

* RDS(on) = 0.125 Ω per channel (TYP)

* Fast demagnetization of inductive loads VDEMAG(TYP) = VCC - 54 V

* Per channel process side op. current

* ISO808 IOUT < 0.7 A

* I

ISO808-1 General Description

The ISO808 and ISO808-1, are galvanic isolated 8-channel drivers featuring a low supply current. Each driver contains 2 independent galvanic isolated voltage domains (VCC and VDD for the Process and Control Logic stages, respectively). The ICs are intended for driving any kind of load with one side .

ISO808-1 Datasheet (1.69 MB)

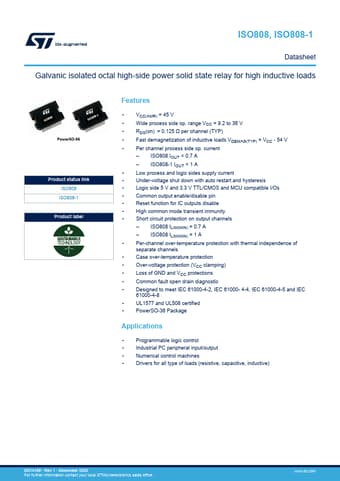

Preview of ISO808-1 PDF

Datasheet Details

Part number:

ISO808-1

Manufacturer:

STMicroelectronics ↗

File Size:

1.69 MB

Description:

Galvanic isolated octal high-side power solid state relay.
ISO808, ISO808-1 Datasheet Galvanic isolated octal high-side power solid state relay for high inductive loads Product status link ISO808 ISO808-1 Pro.
