ISOSD61 - High accuracy isolated Sigma-Delta modulator

STMicroelectronics

📥 Download Datasheet

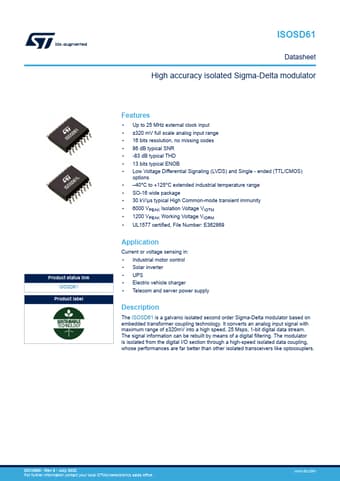

ISOSD61 Datasheet Preview — Preview of ISOSD61 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ISOSD61
Manufacturer: STMicroelectronics ↗
File Size: 563.01 KB
Datasheet: ISOSD61-STMicroelectronics.pdf
Description: High accuracy isolated Sigma-Delta modulator

ISOSD61 Product details

Description

The ISOSD61 is a galvanic isolated second order Sigma-Delta modulator based on embedded transformer coupling technology.

Features

Up to 25 MHz external clock input.
±320 mV full scale analog input range.
16 bits resolution, no missing codes.
86 dB typical SNR.
-83 dB typical THD.
13 bits typical ENOB.
Low Voltage Differential Signaling (LVDS) and Single - ended (TTL/CMOS) options.
40°C to +125°C extended industrial temperature range.
SO-16 wide package.
30 kV/µs typical High Common-mode transient immunity.
6000 VPEA.
