PCM1712U, PCM1712U_Burr Datasheet - Burr-Brown Corporation

PCM1712U DIGITAL-TO-ANALOG CONVERTER

The PCM1712 is a complete low cost stereo, audio digital-to-analog converter, including digital interpolation filter, 3rd-order delta-sigma DAC, and analog output amplifiers. PCM1712 accepts 16-bit normal input data (MSB first, right justified), or 16-bit IIS data (32-bits per word, continuous clock.

PCM1712U Features

* q 16-BIT RESOLUTION q COMPLETE STEREO DAC: 8X Oversampling Digital Filter Multi-Level Delta-Sigma DAC Analog Low Pass Filter Output Amplifier q HIGH PERFORMANCE:

* 87dB THD + N 94dB Dynamic Range 98dB SNR q SYSTEM CLOCK: 384fs q SINGLE +5V POWER SUPPLY q ON-CHIP DIGITAL FILTER: Soft Mute and

PCM1712U_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: PCM1712U, PCM1712U_Burr. Please refer to the document for exact specifications by model.

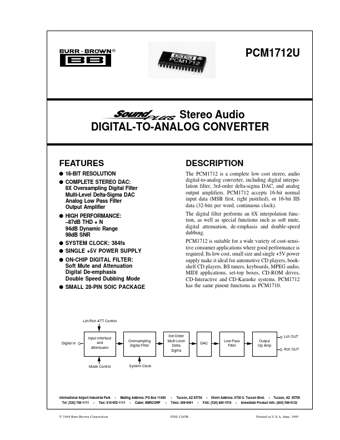

PCM1712U Datasheet Preview Page 2 PCM1712U Datasheet Preview Page 3

Datasheet Details

Part number:

PCM1712U, PCM1712U_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

101.65 KB

Description:

Digital-to-analog converter.

Note:

This datasheet PDF includes multiple part numbers: PCM1712U, PCM1712U_Burr.
Please refer to the document for exact specifications by model.
