PCM1715U - DIGITAL-TO-ANALOG CONVERTER

This page provides the datasheet information for the PCM1715U, a member of the PCM1715U_Burr DIGITAL-TO-ANALOG CONVERTER family.

Datasheet Summary

Description

The PCM1715 is a low cost, dual voltage output CMOS digital-to-analog converter.

Incorporated into the PCM1715 is a unique multi-level 4th-order deltasigma architecture that eliminates influence from input clock jitter and RF interferance resulting in truly superior performance.

Features

  • q DUAL MULTI-LEVEL NOISE.

📥 Download Datasheet

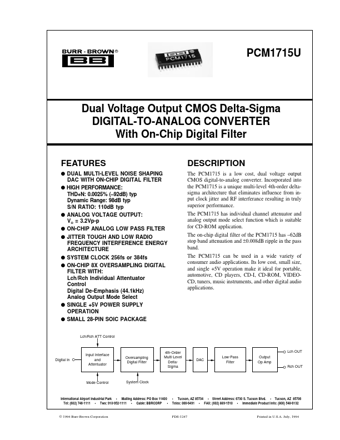

Datasheet preview – PCM1715U

Datasheet Details

Part number PCM1715U
Manufacturer Burr-Brown Corporation
File Size 77.93 KB
Description DIGITAL-TO-ANALOG CONVERTER
Datasheet download datasheet PCM1715U Datasheet
Additional preview pages of the PCM1715U datasheet.

📁 Similar Datasheet

  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1730 - Audio Stereo Digital-to-Analog Conver (Burr-Brown)
  • PCM1741 - DIGITAL-TO-ANALOG CONVERTER (Burr-Brown)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown Corporation
  • PCM1710U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1712U - DIGITAL-TO-ANALOG CONVERTER
  • PCM1716 - DIGITAL-TO-ANALOG CONVERTER
  • PCM1717 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1718E - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1719 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - Dual 18-Bit Monolithic Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700U - Dual 18-Bit Monolithic Audio DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text
® 49% FPO PCM1715U Dual Voltage Output CMOS Delta-Sigma DIGITAL-TO-ANALOG CONVERTER With On-Chip Digital Filter FEATURES q DUAL MULTI-LEVEL NOISE SHAPING DAC WITH ON-CHIP DIGITAL FILTER q HIGH PERFORMANCE: THD+N: 0.0025% (–92dB) typ Dynamic Range: 98dB typ S/N RATIO: 110dB typ q ANALOG VOLTAGE OUTPUT: VO = 3.2Vp-p q ON-CHIP ANALOG LOW PASS FILTER q JITTER TOUGH AND LOW RADIO FREQUENCY INTERFERENCE ENERGY ARCHITECTURE q SYSTEM CLOCK 256fs or 384fs q ON-CHIP 8X OVERSAMPLING DIGITAL FILTER WITH: Lch/Rch Individual Attentuator Control Digital De-Emphasis (44.1kHz) Analog Output Mode Select q SINGLE +5V POWER SUPPLY OPERATION q SMALL 28-PIN SOIC PACKAGE Lch/Rch ATT Control DESCRIPTION The PCM1715 is a low cost, dual voltage output CMOS digital-to-analog converter.
