PCM1718E - Stereo Audio DIGITAL-TO-ANALOG CONVERTER

This page provides the datasheet information for the PCM1718E, a member of the PCM1718E_Burr Stereo Audio DIGITAL-TO-ANALOG CONVERTER family.

Datasheet Summary

Description

The PCM1718 is a complete low cost stereo, audio digital-to-analog converter, including digital interpolation filter, 3rd-order delta-sigma DAC, and analog output amplifiers.

PCM1718 is fabricated on a highly advanced 0.6µ CMOS process.

Features

  • q.

📥 Download Datasheet

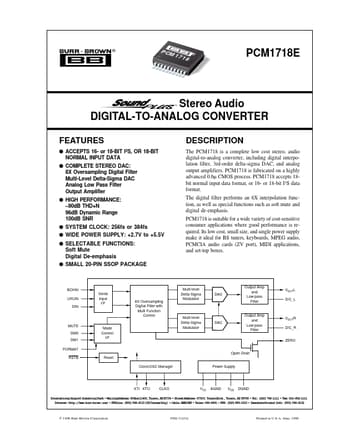

Datasheet preview – PCM1718E

Datasheet Details

Part number PCM1718E
Manufacturer Burr-Brown Corporation
File Size 172.89 KB
Description Stereo Audio DIGITAL-TO-ANALOG CONVERTER
Datasheet download datasheet PCM1718E Datasheet
Additional preview pages of the PCM1718E datasheet.

📁 Similar Datasheet

  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1730 - Audio Stereo Digital-to-Analog Conver (Burr-Brown)
  • PCM1741 - DIGITAL-TO-ANALOG CONVERTER (Burr-Brown)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown Corporation
  • PCM1710U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1712U - DIGITAL-TO-ANALOG CONVERTER
  • PCM1715U - DIGITAL-TO-ANALOG CONVERTER
  • PCM1716 - DIGITAL-TO-ANALOG CONVERTER
  • PCM1717 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1719 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - Dual 18-Bit Monolithic Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700U - Dual 18-Bit Monolithic Audio DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text
® PCM 171 ® 8 PCM1718E Stereo Audio DIGITAL-TO-ANALOG CONVERTER TM FEATURES q ACCEPTS 16- or 18-BIT I2S, OR 18-BIT NORMAL INPUT DATA q COMPLETE STEREO DAC: 8X Oversampling Digital Filter Multi-Level Delta-Sigma DAC Analog Low Pass Filter Output Amplifier q HIGH PERFORMANCE: –90dB THD+N 96dB Dynamic Range 100dB SNR q SYSTEM CLOCK: 256fs or 384fs q WIDE POWER SUPPLY: +2.7V to +5.5V q SELECTABLE FUNCTIONS: Soft Mute Digital De-emphasis q SMALL 20-PIN SSOP PACKAGE DESCRIPTION The PCM1718 is a complete low cost stereo, audio digital-to-analog converter, including digital interpolation filter, 3rd-order delta-sigma DAC, and analog output amplifiers. PCM1718 is fabricated on a highly advanced 0.6µ CMOS process.
