PCM1716 - DIGITAL-TO-ANALOG CONVERTER

This page provides the datasheet information for the PCM1716, a member of the PCM1716_Burr DIGITAL-TO-ANALOG CONVERTER family.

Datasheet Summary

Description

The PCM1716 is designed for Mid to High grade Digital Audio applications which achieve 96kHz sampling rates with 24-bit audio data.

Features

Burr-Brown Corporation

📥 Download Datasheet

Datasheet Details

Part number	PCM1716
Manufacturer	Burr-Brown Corporation
File Size	222.51 KB
Description	DIGITAL-TO-ANALOG CONVERTER
Datasheet	PCM1716 Datasheet
Additional preview pages of the PCM1716 datasheet.

📁 Similar Datasheet

PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
PCM1730 - Audio Stereo Digital-to-Analog Conver (Burr-Brown)
PCM1741 - DIGITAL-TO-ANALOG CONVERTER (Burr-Brown)
PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
PCM1753 - Digital-to-Analog Converter (Texas Instruments)
PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
PCM1754 - Digital-to-Analog Converter (Texas Instruments)
PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
PCM1755 - Digital-to-Analog Converter (Texas Instruments)

Other Datasheets by Burr-Brown Corporation

PCM1710U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
PCM1712U - DIGITAL-TO-ANALOG CONVERTER
PCM1715U - DIGITAL-TO-ANALOG CONVERTER
PCM1717 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
PCM1718E - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
PCM1719 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
PCM1700P - Dual 18-Bit Monolithic Audio DIGITAL-TO-ANALOG CONVERTER
PCM1700U - Dual 18-Bit Monolithic Audio DIGITAL-TO-ANALOG CONVERTER

Full PDF Text Transcription

Click to expand full text

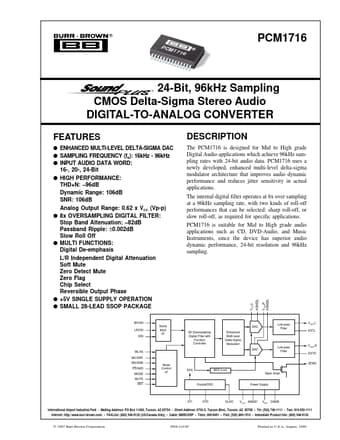

® PCM 49% 1 716 FPO PCM1716 24-Bit, 96kHz Sampling CMOS Delta-Sigma Stereo Audio DIGITAL-TO-ANALOG CONVERTER TM FEATURES q ENHANCED MULTI-LEVEL DELTA-SIGMA DAC q SAMPLING FREQUENCY (fs): 16kHz - 96kHz q INPUT AUDIO DATA WORD: 16-, 20-, 24-Bit q HIGH PERFORMANCE: THD+N: –96dB Dynamic Range: 106dB SNR: 106dB Analog Output Range: 0.62 x VCC (Vp-p) q 8x OVERSAMPLING DIGITAL FILTER: Stop Band Attenuation: –82dB Passband Ripple: ±0.
