PCM1717 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER

This page provides the datasheet information for the PCM1717, a member of the PCM1717_Burr Stereo Audio DIGITAL-TO-ANALOG CONVERTER family.

Datasheet Summary

Description

The PCM1717 is a complete low cost stereo, audio digital-to-analog converter, including digital interpolation filter, 3rd-order delta-sigma DAC, and analog output amplifiers.

PCM1717 is fabricated on a highly advanced 0.6µ CMOS process.

Features

  • q.

📥 Download Datasheet

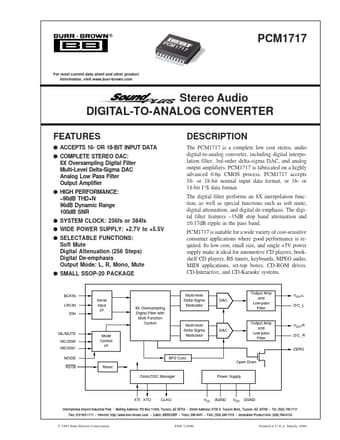

Datasheet preview – PCM1717
