DAC8871 Description

www.DataSheet4U.com BurrĆBrown Products from Texas Instruments DA C8 871 DAC8871 SBAS396 * JUNE 2007 16-Bit, Single-Channel, ±18V Output .
The DAC8871 is a 16-bit, single-channel, serial input, voltage output digital-to-analog converter (DAC).

DAC8871 Features

* 16-Bit Resolution Output: ±18V for ±18V Reference Input ±18V Supply Operation Very Low Power High Accuracy INL: 1LSB Low Noise: 10nV/√Hz Fast Settling

DAC8871 Applications

* Portable Equipment Automatic Test Equipment Industrial Process Control Data Acquisition Systems Optical Networking VSS VCC VDD DGND VREFH-S VREFH-F VREFL-F VREFL-S RSTSEL RST LDAC Control Logic DAC VOUT AGND CS SCLK SDI Serial Interface Input Data Register DAC Latch DAC8871 Please be aware t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DAC8871, DAC8871_Burr. Please refer to the document for exact specifications by model.

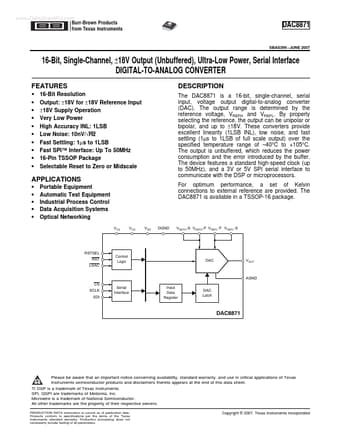

datasheet Preview Page 2 datasheet Preview Page 3
