NX7312UA Datasheet - CEL

InGaAsP MQW FP TOSA

NX7312UA Features

* OPTICAL OUTPUT POWER: Pf = 0.2 mW

* LOW THRESHOLD CURRENT Ith = 8 mA TYP @ TC = 25°C

* WIDE OPERATING TEMPERATURE RANGE: -40 to +85°C

* InGaAs MONITOR PIN-PD

* SMALL PACKAGE ø3.8 mm TOSA (Total length 12.0 mm MAX)

* BASED ON TELCORDIA RELIABILITY GR-

NX7312UA General Description

NEC's NX7312UA is a 1310 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP) laser diode TOSA (transmitter optical subassembly) with InGaAs monitor PIN-PD in a receptacle type package designed for SFF/SFP transceiver with LC duplex receptacle. This device is ideal for Synchronous Digital Hier.

NX7312UA Datasheet (190.89 KB)

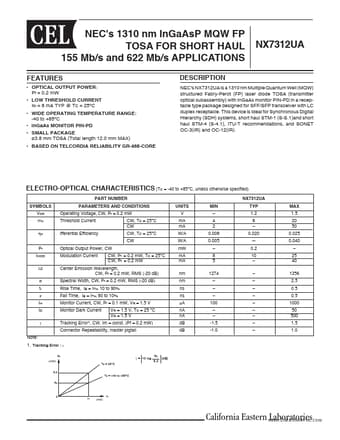

NX7312UA Datasheet Preview — Preview of NX7312UA PDF

Datasheet Details

Part number:

NX7312UA

Manufacturer:

CEL

File Size:

190.89 KB

Description:

Ingaasp mqw fp tosa.
