NX7315UA InGaAsP MQW FP TOSA

NX7315UA Description

PRELIMINARY DATA SHEET NEC's 1310 nm InGaAsP MQW FP TOSA NX7315UA FOR 2.5 Gb/s INTRA-OFFICE APPLICATION .
NEC's NX7315UA is a 1310 nm Multiple Quantum Well (MQW) structured Fabry-Perot (FP) laser diode transmitter optical subassembly (TOSA) with InGaAs mon.

NX7315UA Features

* OPTICAL OUTPUT POWER: Pf = 0.6 mW
* LOW THRESHOLD CURRENT Ith = 8 mA TYP @ TC = 25°C
* WIDE OPERATING TEMPERATURE RANGE: -40 to +85°C
* InGaAs MONITOR PIN-PD
* SMALL PACKAGE ø3.8 mm (Total length 12.0 mm MAX
* BASED ON Telcordia Reliability GR-468-CO

NX7315UA Applications

* These NEC products are not intended for use in life support devices, appliances, or systems where the malfunction of these products can reasonably be expected to result in personal injury. The customers of CEL using or selling these products for use in such applications do so at their own risk and a

📥 Download Datasheet

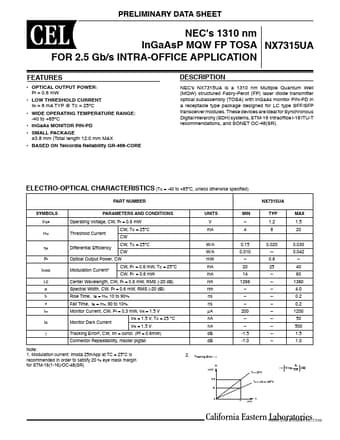

Preview of NX7315UA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NX7315UA
Manufacturer
CEL
File Size
322.18 KB
Datasheet
NX7315UA_CEL.pdf
Description
InGaAsP MQW FP TOSA
