Part number:
CEM4953H
Manufacturer:
CET
File Size:
422.15 KB
Description:
Dual p-channel mosfet.

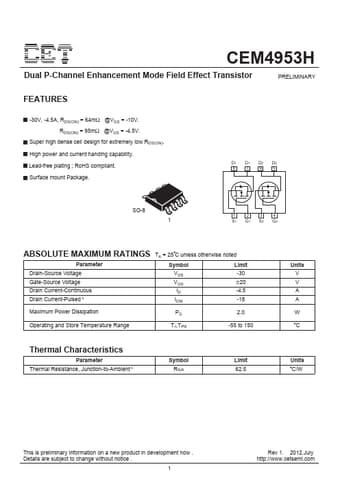

CEM4953H Datasheet (422.15 KB)
* -30V, -4.5A, RDS(ON) = 64mΩ @VGS = -10V. RDS(ON) = 95mΩ @VGS = -4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. Lead-free plating ; RoHS compliant. Surface mount Package. D1 D1 D2 D2 8765 SO-8 1 1234 S1 G1 S2 G2 ABSOLUTE MAXIMUM RATINGS T
CEM4953H Datasheet (422.15 KB)
CEM4953H
CET
422.15 KB
Dual p-channel mosfet.
