CS1210 Datasheet - CIT Relay

CS1210 CIT SWITCH

CS1210 SPECIFICATIONS Electrical Ratings Electrical Life Contact Resistance Actuation Force Actuator Travel Dielectric Strength Insulation Resistance Operating Temperature Storage Temperature 50mA @ 50VDC 100,000 cycles typical < 50 mΩ initial 160 +/- 50gF 260 +/- 50gF .20 +/- .1mm 250Vrms min > 100MΩ min -40°C to 85°C -40°C to 85°C MATERIALS ←RoHS COMPLIANT Actuator 4/6 Nylon Housing 4/6 Nylon Cover Stainless Steel Contacts Stainless Steel, Silver Plated Terminals Phosphor Bronze, .

CS1210 Datasheet (137.59 KB)

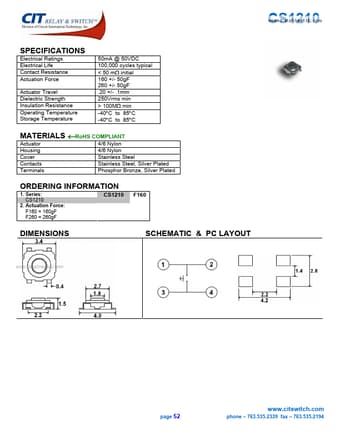

Preview of CS1210 PDF

Datasheet Details

Part number:

CS1210

Manufacturer:

CIT Relay

File Size:

137.59 KB

Description:

Cit switch.
