CS1213 Datasheet - CIT Relay

CS1213 - CIT SWITCH

CS1213 SPECIFICATIONS Electrical Ratings Electrical Life Contact Resistance Actuation Force Actuator Travel Dielectric Strength Insulation Resistance Operating Temperature Storage Temperature 50mA @ 50VDC 200,000 cycles typical < 50 mΩ initial 160 +/- 50gF 260 +/- 50gF .15 +/- .05mm 250Vrms min > 100MΩ min -40°C to 85°C -40°C to 85°C MATERIALS ←RoHS COMPLIANT Actuator Housing Cover Contacts Terminals 4/6 Nylon 4/6 Nylon Stainless Steel Stainless Steel, Silver Plated Brass, Silver Plated ORDERI.

CS1213_CITRelay.pdf

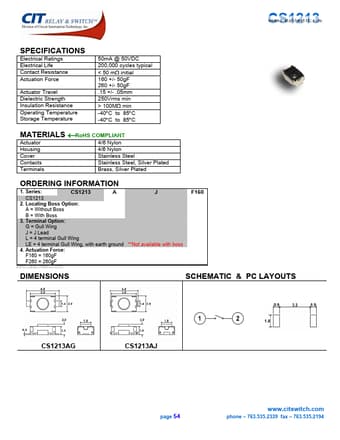

Preview of CS1213 PDF
CS1213 Datasheet Preview Page 2

Datasheet Details

Part number:

CS1213

Manufacturer:

CIT Relay

File Size:

219.13 KB

Description:

Cit switch.
