CS1110 Datasheet - CIT Relay

CS1110 DIMENSIONS SCHEMATIC & PC LAYOUT

CS1110 www.DataSheet4U.com SPECIFICATIONS Electrical Ratings Electrical Life Contact Resistance Actuation Force Actuator Travel Dielectric Strength Insulation Resistance Operating Temperature Storage Temperature 50mA @ 48VDC 100,000 cycles typical < 50 mΩ initial 160 +/- 50gF .25 +/- .1mm 1000Vrms min > 100MΩ min -40°C to 85°C -40°C to 85°C MATERIALS ←RoHS COMPLIANT Actuator Housing Cover Contacts Terminals 4/6 Nylon 4/6 Nylon Steel Phosphor Bronze, Silver Plated Brass, Silver Plated ORDERING.

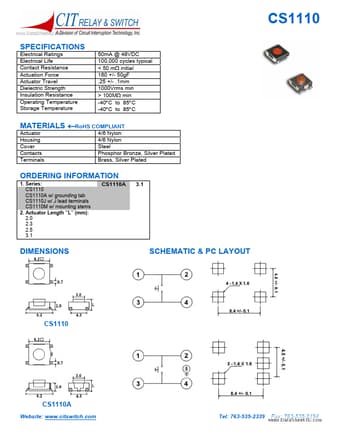

CS1110 Datasheet (215.98 KB)

CS1110 Datasheet Preview — Preview of CS1110 PDF

Datasheet Details

Part number:

CS1110

Manufacturer:

CIT Relay

File Size:

215.98 KB

Description:

Dimensions schematic & pc layout.
