CS1211 Datasheet - CIT Relay

CS1211 CIT SWITCH

CS1211 SPECIFICATIONS Electrical Ratings Electrical Life Contact Resistance Actuation Force Actuator Travel Dielectric Strength Insulation Resistance Operating Temperature Storage Temperature 50mA @ 50VDC 100,000 cycles typical < 50 mΩ initial 180 +/- 50gF .25 +/- .1mm 250Vrms min > 100MΩ min -40°C to 85°C -40°C to 85°C MATERIALS ←RoHS COMPLIANT Actuator 4/6 Nylon Housing 4/6 Nylon Cover Stainless Steel Contacts Stainless Steel, Silver Plated Terminals Brass, Silver Plated ORDERING.

CS1211_CITRelay.pdf

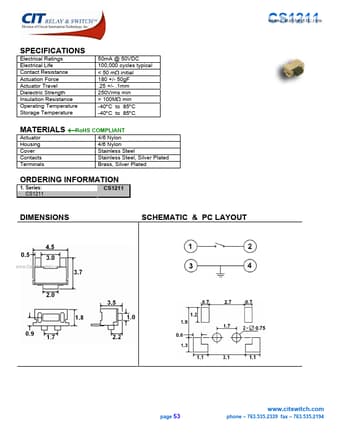

Preview of CS1211 PDF

Datasheet Details

Part number:

CS1211

Manufacturer:

CIT Relay

File Size:

140.86 KB

Description:

Cit switch.
