CS1109 CIT SWITCH

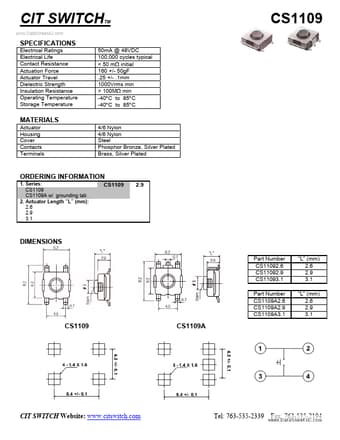

CIT SWITCH www.DataSheet4U.com TM CS1109 SPECIFICATIONS Electrical Ratings Electrical Life Contact Resistance Actuation Force Actuator Travel Dielectric Strength Insulation Resistance Operating Temperature Storage Temperature 50mA @ 48VDC 100,000 cycles typical < 50 mΩ initial 160 +/- 50gF .25 +/- .1mm 1000Vrms min > 100MΩ min -40°C to 85°C -40°C to 85°C MATERIALS Actuator Housing Cover Contacts Terminals 4/6 Nylon 4/6 Nylon Steel Phosphor Bronze, Silver Plated Brass, Silver Plated ORDERING.

CS1109 Datasheet (309.65 KB)

CS1109 Datasheet Preview — Preview of CS1109 PDF

Datasheet Details

Part number:

CS1109

Manufacturer:

CIT Relay

File Size:

309.65 KB

Description:

Cit switch.
