CS1108 Datasheet, driver equivalent, Cherry Semiconductor Corporation

CS1108 Features

  • Driver s Fault Detection Open Circuit Short Circuit Over Temperature s VCC Sense: Output Turns On with Loss of VCC s Low Standby Current Absolute Maximum Ratings Storage Temperature . . . . .

PDF File Details

Part number:

CS1108

Manufacturer:

Cherry Semiconductor Corporation

File Size:

132.08kb

Download:

📄 Datasheet

Description:

Single lamp driver. This ASIC provides up to 350mA of drive current for powering bulbs. The typical application for this part is for use in airbag system

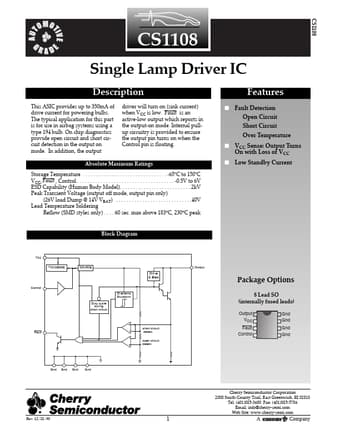

Datasheet Preview: CS1108 📥 Download PDF (132.08kb)
Page 2 of CS1108 Page 3 of CS1108

CS1108 Application

  • Applications Diagram Output 10nF VCC Fault 20k Control VBAT VCC CS1108 Gnd Gnd Gnd Gnd microprocessor 3 CS1108 Package Specification PACKAGE
