CS110N06A8-2

Silicon N-Channel Power MOSFET

CS110N06A8-2 Features

* Fast Switching

* Low ON Resistance(Rdson≤8 mΩ)

* Low Gate Charge

* Low Reverse transfer capacitances

* 100% Single Pulse avalanche energy Test Applications: Power switch circuit of adaptor and charger. 60 V 110 A 60 A 135.8 W 6 mΩ Absolute(Tj= 25℃ unless otherwise spec

CS110N06A8-2 General Description

CS110N06 A8-2, the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. This device is VDSS ID(Silicon limited current) ID(Package limited) PD RDS(ON)Typ suitable f.

CS110N06A8-2 Datasheet (1.20 MB)

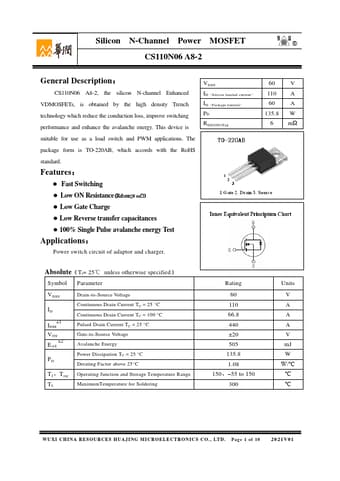

Preview of CS110N06A8-2 PDF

Datasheet Details

Part number:

CS110N06A8-2

Manufacturer:

CR Micro

File Size:

1.20 MB

Description:

Silicon n-channel power mosfet.
