CS1102 Datasheet - ETC

CS1102 CIT SWITCH

CIT SWITCH SPECIFICATIONS Electrical Ratings Electrical Life Contact Resistance Actuation Force Actuator Travel Dielectric Strength Insulation Resistance Operating Temperature Storage Temperature TM CS1102 50mA @ 48VDC 100,000 cycles typical < 50 mΩ initial 100 +/- 50gF 160 +/- 30gF 260 +/- 50gF .25 +/- .1mm 1000Vrms min > 1000MΩ min -40°C to 85°C -40°C to 85°C MATERIALS Actuator Housing Cover Contacts Terminals 4/6 Nylon 4/6 Nylon Stainless Steel Phosphor Bronze, Silver Plated Brass, Silver.

CS1102_ETC.pdf

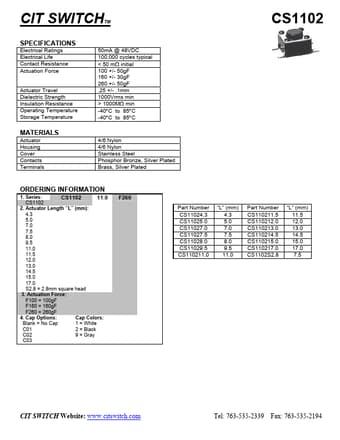

Preview of CS1102 PDF
CS1102 Datasheet Preview Page 2

Datasheet Details

Part number:

CS1102

Manufacturer:

ETC

File Size:

191.33 KB

Description:

Cit switch.
