CS1205 Datasheet - ETC

CS1205 CIT SWITCH

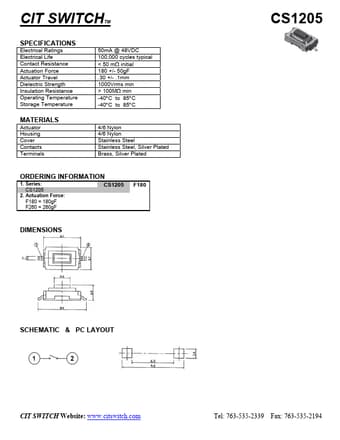

CIT SWITCH SPECIFICATIONS Electrical Ratings Electrical Life Contact Resistance Actuation Force Actuator Travel Dielectric Strength Insulation Resistance Operating Temperature Storage Temperature TM CS1205 50mA @ 48VDC 100,000 cycles typical < 50 mΩ initial 180 +/- 50gF .30 +/- .1mm 1000Vrms min > 100MΩ min -40°C to 85°C -40°C to 85°C MATERIALS Actuator Housing Cover Contacts Terminals 4/6 Nylon 4/6 Nylon Stainless Steel Stainless Steel, Silver Plated Brass, Silver Plated ORDERING INFORMATI.

CS1205 Datasheet (171.64 KB)

CS1205 Datasheet Preview — Preview of CS1205 PDF

Datasheet Details

Part number:

CS1205

Manufacturer:

ETC

File Size:

171.64 KB

Description:

Cit switch.
