CS120-2

Commercial Specification Grade 15 and 20 Ampere AC Quiet Switches

CS120-2 Features

* Full-rated current capacity on fluorescent, tungsten and resistive loads; motor load capacity is up to 80% of switch current rating

* Large silver-cadium oxide contacts minimize pitting welding, thereby maximizing current flow and extending life

* All molded parts are thick

CS120-2 General Description

15 A 120/277V AC 1/2 HP @120V 2 HP @240V CS115-2 CS215-2 CS315-2 CS415-2 5501-LHI 5503-LHI 20 A 120/277V AC 1 HP @120V 2 HP @240V CS120-2 CS220-2 CS320-2 CS420-2

*

*

*ANSI Symbol Single Pole Double Pole 3-Way 4-Way Single Pole, Lighted Toggle 3-Way, Lighted Toggle S S2 S3 S4 .

CS120-2 Datasheet (95.61 KB)

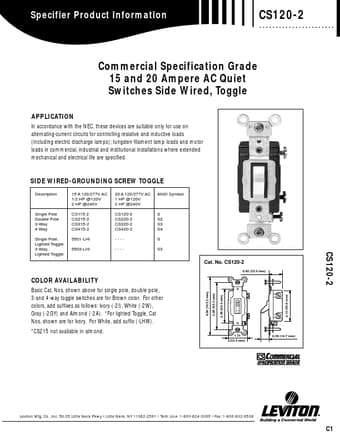

Preview of CS120-2 PDF

Datasheet Details

Part number:

CS120-2

Manufacturer:

Leviton

File Size:

95.61 KB

Description:

Commercial specification grade 15 and 20 ampere ac quiet switches.
Specifier Product Information CS120-2 Commercial Specification Grade 15 and 20 Ampere AC Quiet Switches Side Wired, Toggle APPLICATION In accordance.
