CS1200L, CS1050L Datasheet - Coilcraft

CS1200L Current Sensors

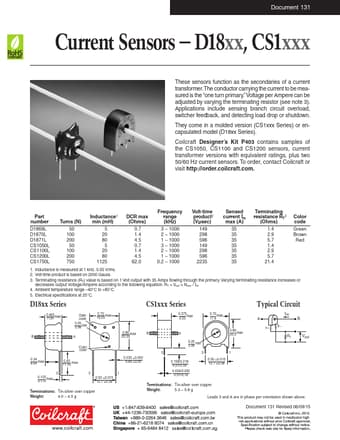

Document 131 Current Sensors D18xx, CS1xxx These sensors function as the secondaries of a current transformer.The conductor carrying the current to be measured is the “one turn primary.”Voltage per Ampere can be adjusted by varying the terminating resistor (see note 3). Applications include sensing branch circuit overload, switcher feedback, and detecting load drop or shutdown. They come in a molded version (CS1xxx Series) or encapsulated model (D18xx Series). Coilcraft Designer’s Kit .

CS1050L-Coilcraft.pdf

This datasheet PDF includes multiple part numbers: CS1200L, CS1050L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CS1200L, CS1050L

Manufacturer:

Coilcraft

File Size:

281.22 KB

Description:

Current sensors.

Note:

This datasheet PDF includes multiple part numbers: CS1200L, CS1050L.
Please refer to the document for exact specifications by model.
