CS120N06C8 Datasheet, Mosfet, CR Micro

CS120N06C8 Features

• Mosfet l Fast Switching l Low ON Resistance(Rdson≤6.5mΩ) l Low Gate Charge l Low Reverse transfer capacitances(Typical:217pF) l 100% Single Pulse avalanche energy Test Applications： Power

PDF File Details

Part number:

CS120N06C8

Manufacturer:

CR Micro

File Size:

373.79kb

Download:

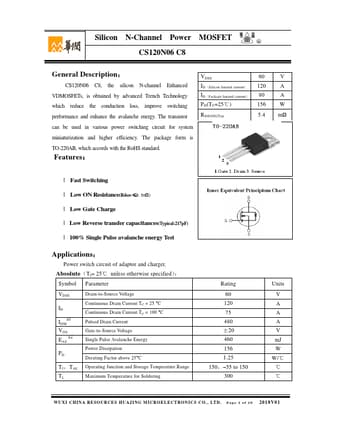

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS120N06 C8, the silicon N-channel Enhanced VDMOSFETs, is obtained by advanced Trench Technology which reduce the conduction loss, i

CS120N06C8 Application

• Applications Power switch circuit of adaptor and charger. Absolute（TJ= 25℃ unless otherwise specified）： Symbol Parameter VDSS ID IDMa1 VGS EAS a2
