CS120N10AR Datasheet - CR Micro

CS120N10AR Silicon N-Channel Power MOSFET

CS120N10 AR, the silicon N-channel Enhanced VDMOSFETs, is obtained by advanced Trench Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher effi.

CS120N10AR Features

* VDSS ID PD(TC=25℃) RDS(ON)Typ 100 V 120 A 198 W 7.5 mΩ l Fast Switching l Low ON Resistance(Rdson≤9.5mΩ) l Low Gate Charge (Typical Data:108nC) l Low Reverse transfer capacitances(Typical:311pF) l 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and cha

CS120N10AR-CRMicro.pdf

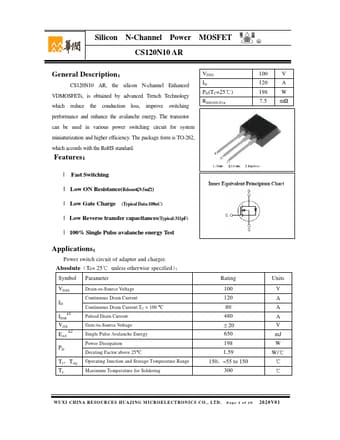

Preview of CS120N10AR PDF
CS120N10AR Datasheet Preview Page 2 CS120N10AR Datasheet Preview Page 3

Datasheet Details

Part number:

CS120N10AR

Manufacturer:

CR Micro

File Size:

299.22 KB

Description:

Silicon n-channel power mosfet.
