CS120N08A8 Datasheet, Mosfet, CR Micro

CS120N08A8 Features

  • Mosfet
  • Fast Switching
  • Low ON Resistance(Rdson≤7.5mΩ)
  • Low Gate Charge (Typical Data:74.4nC)
  • Low Reverse transfer capacitances(Typical:253pF)
  • <

PDF File Details

Part number:

CS120N08A8

Manufacturer:

CR Micro

File Size:

529.36kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS120N08 A8, the silicon N-channel Enhanced VDMOSFETs, is obtained by advanced Trench Technology which reduce the conduction loss

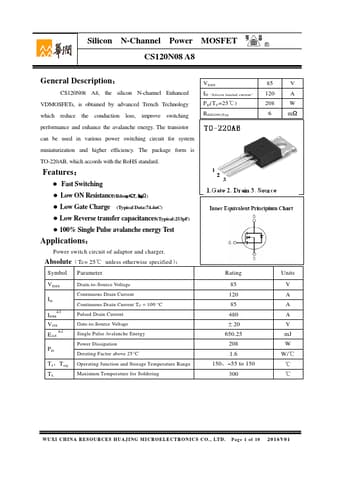

Datasheet Preview: CS120N08A8 📥 Download PDF (529.36kb)
Page 2 of CS120N08A8 Page 3 of CS120N08A8

CS120N08A8 Application

  • Applications Power switch circuit of adaptor and charger. Absolute(Tc= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1 VGS EAS a
