CS120N10A0 Datasheet, Mosfet, CR Micro

CS120N10A0 Features

• Mosfet l Fast Switching l Low ON Resistance(Rdson≤9.5mΩ) l Low Gate Charge (Typical Data:108nC) l Low Reverse transfer capacitances(Typical:311pF) l 100% Single Pulse avalanche energy Test

PDF File Details

Part number:

CS120N10A0

Manufacturer:

CR Micro

File Size:

310.84kb

Download:

📄 Datasheet

Description:

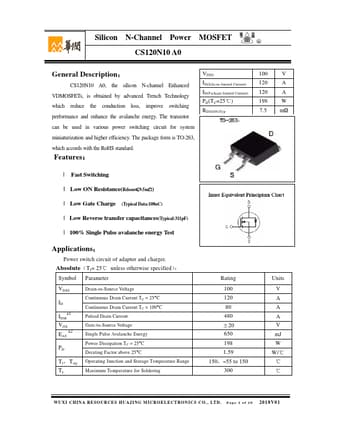

Silicon n-channel power mosfet. CS120N10 A0, the silicon N-channel Enhanced VDMOSFETs, is obtained by advanced Trench Technology which reduce the conduction loss, i

CS120N10A0 Application

• Applications Power switch circuit of adaptor and charger. Absolute（TJ= 25℃ unless otherwise specified）： Symbol Parameter VDSS ID IDMa1 VGS EAS a2

TAGS

CS120N10A0

CR Micro
