CS120N08A0 Silicon N-Channel Power MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

Silicon N-Channel Power MOSFET ○R CS120N08 A0 General .
CS120N08 A0, the silicon N-channel Enhanced VDMOSFETs, is obtained by advanced Trench Technology which reduce the conduction loss, improve switchi.

📥 Download Datasheet

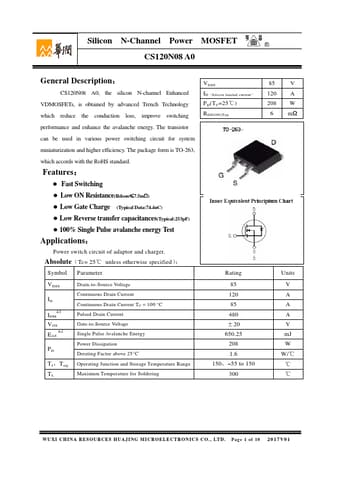

Preview of CS120N08A0 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
CS120N08A0
Manufacturer
CR Micro
File Size
561.02 KB
Datasheet
CS120N08A0-CRMicro.pdf
Description
Silicon N-Channel Power MOSFET

Features

* Fast Switching
* Low ON Resistance(Rdson≤7.5mΩ)
* Low Gate Charge (Typical Data:74.4nC)
* Low Reverse transfer capacitances(Typical:253pF)

Applications

* Power switch circuit of adaptor and charger. Absolute(Tc= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1 VGS EAS a2 PD TJ,Tstg TL Drain-to-Source Voltage Continuous Drain Current Continuous Drain Current TC = 100 °C Pulsed Drain Current Gate-to-Source Voltage Single Pulse Avala
