CMX867A Datasheet - CML Microcircuits

Low Power V.22 Modem

CMX867A Features

* V.22, Bell 212A 1200/1200 or 600/600 bps DPSK

* V.23 1200/75, 1200/1200, 75, 1200 bps FSK

* Bell 202 1200/150, 1200/1200, 150, 1200 bps FSK

* V.21 or Bell 103 300/300 bps FSK

* DTMF/Tones Transmit and Receive

* ‘Powersave’ Standby Mode

* Soft

CMX867A General Description

The CMX867A is a multi-standard modem for use in telephone based information and telemetry systems. Control of the device is via a simple high speed serial bus, compatible with most types of µC serial interface. The data transmitted and received by the modem is also transferred over the same serial .

CMX867A Datasheet (1.50 MB)

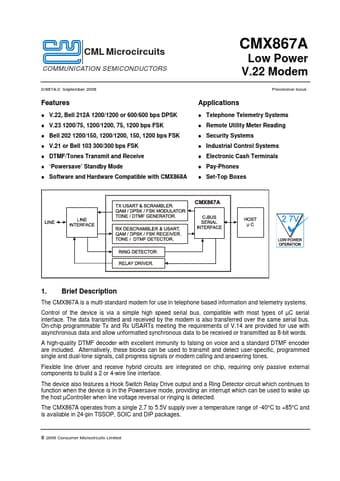

CMX867A Datasheet Preview — Preview of CMX867A PDF

Datasheet Details

Part number:

CMX867A

Manufacturer:

CML Microcircuits

File Size:

1.50 MB

Description:

Low power v.22 modem.
