CMX868A Datasheet - CML

Low Power V.22 bis Modem

CMX868A Features

* V.22 bis 2400/2400 bps QAM

* V.22, Bell 212A 1200/1200 or 600/600 bps DPSK

* V.23 1200/75, 1200/1200, 75, 1200 bps FSK

* Bell 202 1200/150, 1200/1200, 150, 1200 bps FSK

* V.21 or Bell 103 300/300 bps FSK

* DTMF/Tones Transmit and Receive

* ‘P

CMX868A General Description

The CMX868A is a multi-standard modem for use in telephone based information and telemetry systems. Control of the device is via a simple high speed serial bus, compatible with most types of µC serial interface. The data transmitted and received by the modem is also transferred over the same serial .

CMX868A Datasheet (1.35 MB)

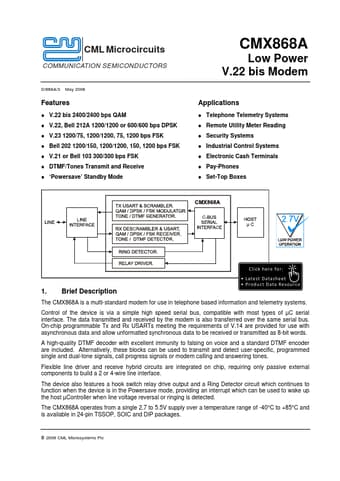

CMX868A Datasheet Preview — Preview of CMX868A PDF

Datasheet Details

Part number:

CMX868A

Manufacturer:

CML

File Size:

1.35 MB

Description:

Low power v.22 bis modem.
