CMX869A - Low Power V.32 bis Modem

CMX869A Description

CMX869A CML Microcircuits Low Power V.32 bis Modem COMMUNICATION SEMICONDUCTORS with Auto / Manual Connect D/869A/2 August 2005 .
The CMX869A is a multi-standard modem for use in EPOS terminals, telephone based information and telemetry systems.

CMX869A Features

* V.32 bis/V.32/V.22 bis/V.22 Automodem (14400, 12000, 9600, 7200, 4800, 2400, 1200 bps Duplex)
* V.22 bis / V.22 Manual Modem (2400, 1200 bps)
* V.23 (1200/75, 1200/1200, 75, 1200 bps FSK)
* Bell 202 (1200/150, 1200/1200, 150, 1200 bps FSK)
* V.21 or Bell 103

CMX869A Applications

* Provisional Issue
* EPOS Terminals
* Telephone Telemetry Systems
* Remote Utility Meter Reading
* Security Systems
* Industrial Control Systems
* Electronic Cash Terminals
* Pay-Phones
* Cable TV Set-Top Boxes 1. Brief Descrip

📥 Download Datasheet

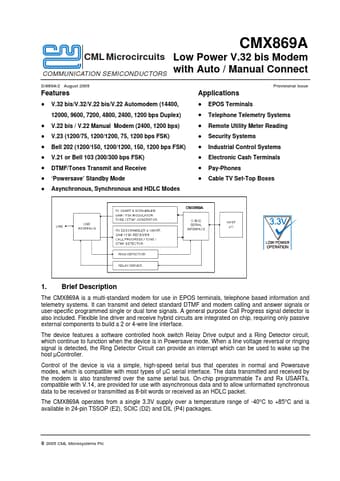

Preview of CMX869A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CMX869A
Manufacturer
CML
File Size
1.50 MB
Datasheet
CMX869A-CML.pdf
Description
Low Power V.32 bis Modem
