CMX865A Datasheet - CML

DTMF CODEC AND TELECOM SIGNALLING COMBO

CMX865A Features

* V.23 1200/75, 1200/1200, 75, 1200 bps FSK

* Bell 202 1200/150, 1200/1200, 150, 1200 bps FSK

* V.21 or Bell 103 300/300 bps FSK

* Low Voice Falsing DTMF Decoder

* DTMF/Tones Transmit and Receive

* Low Power - High Performance Applications

* W

CMX865A General Description

The CMX865A is a multi-standard modem for use in Wireless Local Loop, Short Message Service telephone based information and telemetry systems. Flexible line driver, hybrid and receiver circuits are integrated on chip, requiring only passive external components to build a 2 or 4-wire line interface..

CMX865A Datasheet (1.76 MB)

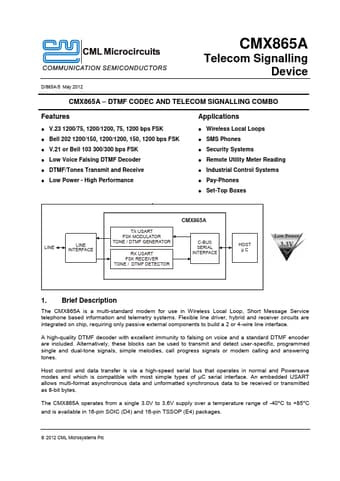

Preview of CMX865A PDF

Datasheet Details

Part number:

CMX865A

Manufacturer:

CML

File Size:

1.76 MB

Description:

Dtmf codec and telecom signalling combo.
