CMX869 - Low Power V.32 bis Modem

CMX869 Description

CML Microcircuits COMMUNICATION SEMICONDUCTORS D/869/4 July 2004 .
The CMX869 is a multi-standard modem for use in telephone based information and telemetry systems.

CMX869 Features

* V.32 bis/V.32/V.22 bis/V.22 automodem. (14400, 12000, 9600, 7200, 4800, 2400, 1200 bps duplex)
* V.23 (1200/75, 1200/1200, 75, 1200 bps FSK)
* Bell 202 (1200/150, 1200/1200, 150, 1200 bps FSK)
* V.21 or Bell 103 (300/300 bps FSK)
* DTMF/Tones Transmit and Re

CMX869 Applications

* Telephone Telemetry Systems
* Remote Utility Meter Reading
* Security Systems
* Industrial Control Systems
* Electronic Cash Terminals
* Pay-Phones

📥 Download Datasheet

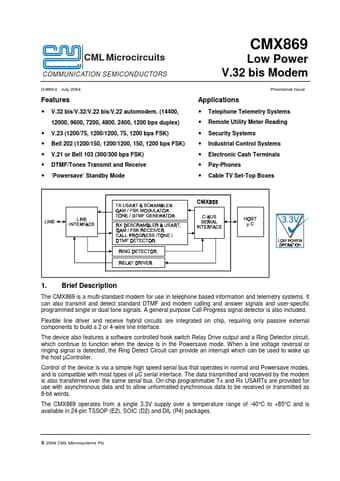

Preview of CMX869 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CMX869
Manufacturer
CML Microcircuits
File Size
1.44 MB
Datasheet
CMX869_CMLMicrocircuits.pdf
Description
Low Power V.32 bis Modem
