CMT2150AW - 240 - 480MHz OOK Stand-Alone Transmitter

Product Overview

CMOSTEK

📥 Download Datasheet

CMT2150AW 240 - 480MHz OOK Stand-Alone Transmitter by CMOSTEK - Datasheet Preview — Datasheet preview – CMT2150AW

Datasheet Details

Part number	CMT2150AW
Manufacturer	CMOSTEK
File Size	773.51 KB
Description	240 - 480MHz OOK Stand-Alone Transmitter
Datasheet	CMT2150AW Datasheet

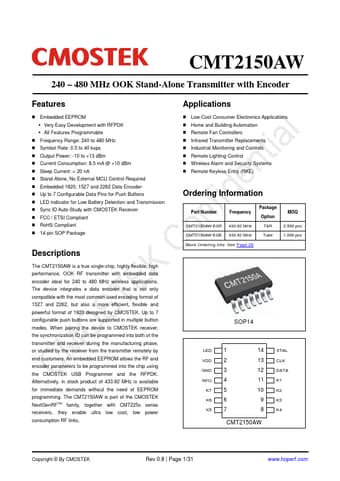

Additional preview pages of the CMT2150AW datasheet.

Product details

Description

The CMT2150AW is a true single-chip, highly flexible, high performance, OOK RF transmitter with embedded data encoder ideal for 240 to 480 MHz wireless applications.

Features

Embedded EEPROM.
Very Easy Development with RFPDK.
All Features Programmable.
Frequency Range: 240 to 480 MHz.
Symbol Rate: 0.5 to 40 ksps.
Output Power: -10 to +13 dBm.
Current Consumption: 8.5 mA @ +10 dBm.
Sleep Current: < 20 nA.
Stand-Alone, No External MCU Control Required.
Embedded 1920, 1527 and 2262 Data Encoder.
Up to 7 Configurable Data Pins for Push Buttons.
LED Indicator for Low Battery Detection and Transmission.
Sync.
