CMT2157A - FSK/OOK Stand-Alone Transmitter

Product Overview

CMOSTEK

Datasheet Details

Part number	CMT2157A
Manufacturer	CMOSTEK
File Size	1.14 MB
Description	FSK/OOK Stand-Alone Transmitter
Datasheet	CMT2157A Datasheet

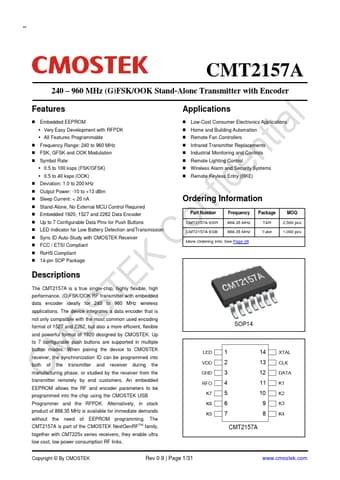

Additional preview pages of the CMT2157A datasheet.

Product details

Description

The CMT2157A is a true single-chip, highly flexible, high performance, (G)FSK/OOK RF transmitter with embedded data encoder ideally for 240 to 960 MHz wireless applications.

Features

Embedded EEPROM.
Very Easy Development with RFPDK.
All Features Programmable.
Frequency Range: 240 to 960 MHz.
FSK, GFSK and OOK Modulation.
Symbol Rate:.
0.5 to 100 ksps (FSK/GFSK).
0.5 to 40 ksps (OOK).
Deviation: 1.0 to 200 kHz.
Output Power: -10 to +13 dBm.
Sleep Current: < 20 nA.
Stand-Alone, No External MCU Control Required.
Embedded 1920, 1527 and 2262 Data Encoder.
Up to 7 Configurable Data Pins for Push Buttons.
