CMT2157B

240MHz - 960MHz Single Chip OOK Transmitter

CMOSTEK

CMT2157B Features

* Build-in EEPROM

* Simplify the engineering development by using RFPDK

* All functions can be configured

* Working frequency：240 MHz ~960 MHz

* Symbol rate：0.5 - 40 kbps

* Output power：0 - +13 dBm

* Working current：5.5 mA @ +10 dBm

* Sleep current：< 20 nA

* The

CMT2157B General Description

LED driving IO Burner port and enabled pin I Supply voltage input I Ground O RF output - No connected I Button 4 I Button 3，DATA pin of burner port. Used to burn EEPROM. I Button 2，CLK pin of burner port. Used to burn EEPROM. I Button 1，CSB pin of burner port. Used to burn EEPROM. Crystal .

CMT2157B Datasheet (0.99 MB)

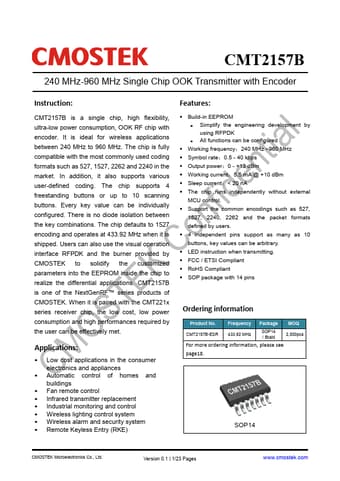

CMT2157B Datasheet Preview — Preview of CMT2157B PDF

Datasheet Details

Part number:

CMT2157B

Manufacturer:

CMOSTEK

File Size:

0.99 MB

Description:

240mhz - 960mhz single chip ook transmitter.
CMT2157B CMT2157B 240 MHz-960 MHz Single Chip OOK Transmitter with Encoder Instruction: CMT2157B is a single chip, high flexibility, ultra-low power.
