CRG30T135AKR5H, Silicon FS Trench IGBT

Silicon FS Trench IGBT CRG30T135AKR5H General .
VCES 1350 V Using owner proprietary trench design, advanced Field Stop (FS) technology IC 30 A and integrated with Free Wheeling Diode, offeri.

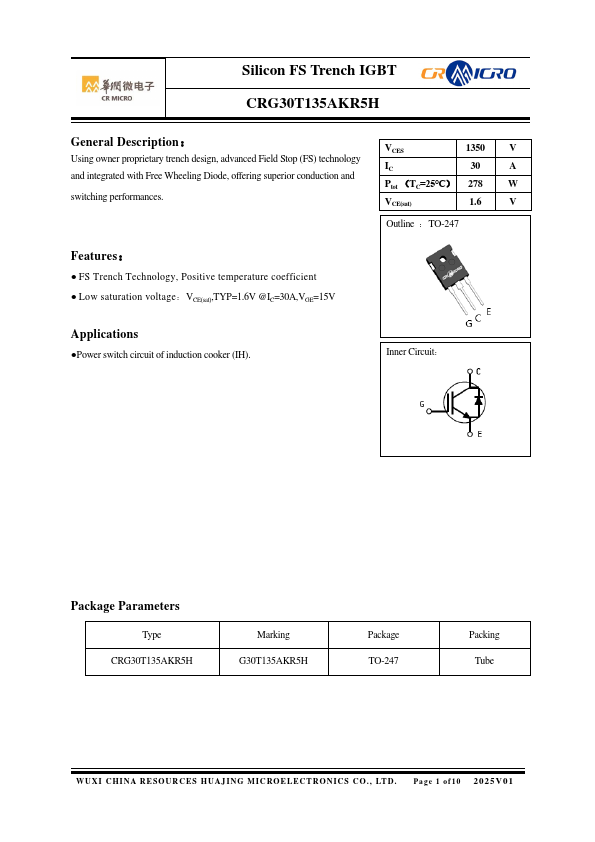

datasheet Preview Page 1 from Datasheet4u.com

CRG30T135AKR5H-CRMicro.pdf

CRG30T135AKR5H Datasheet Preview — Preview of CRG30T135AKR5H PDF

Datasheet Details

Part number:

CRG30T135AKR5H

Manufacturer:

CR Micro

File Size:

1.18 MB

Description:

Silicon FS Trench IGBT

Features

* FS Trench Technology, Positive temperature coefficient

Applications

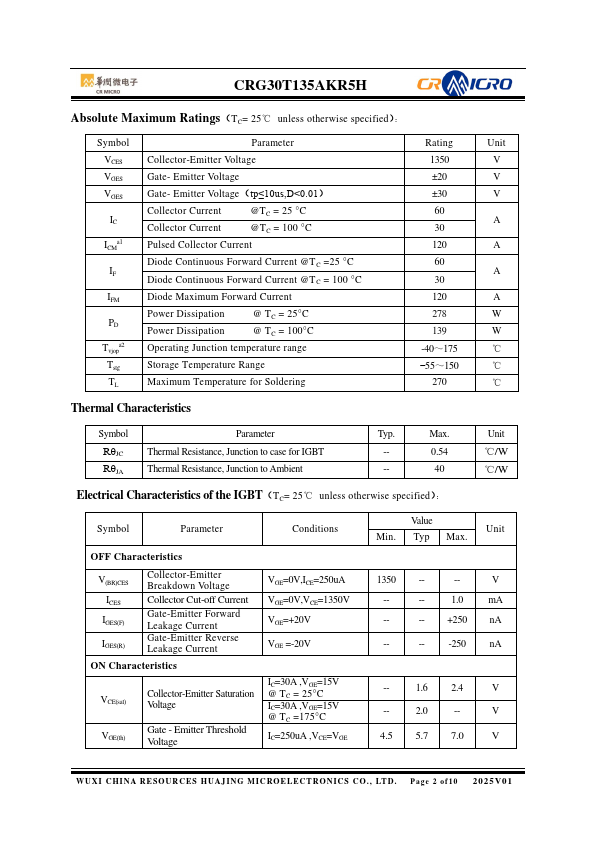

* Power switch circuit of induction cooker (IH). Inner Circuit： Package Parameters Type CRG30T135AKR5H Marking G30T135AKR5H Package TO-247 Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. , LTD. Page 1 of 10 2025V01 CRG30T135AKR5H Absolute Maximum Ratings（TC= 25℃ unless other
