CRG30T65R05SDZ Silicon FS Trench IGBT

CRG30T65R05SDZ Description

Silicon FS Trench IGBT CRG30T65R05SDZ General .
Using micro trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

CRG30T65R05SDZ Features

* FS Trench Technology, Positive temperature coefficient
* Low saturation voltage： VCE(sat),TYP=1.5V @IC=30A,VGE=15V；

CRG30T65R05SDZ Applications

* UPS
* Solar converts
* Charger
* Motor Control VCES 650 V IC 30 A Ptot （TC=25℃） 170 W VCE(sat) 1.5 V TO-263 Package Parameters Type CRG30T65R05SDZ Package TO-263 Marking G30T65R05SDZ Packing Tape & Reel WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. , LTD. Page 1 o

📥 Download Datasheet

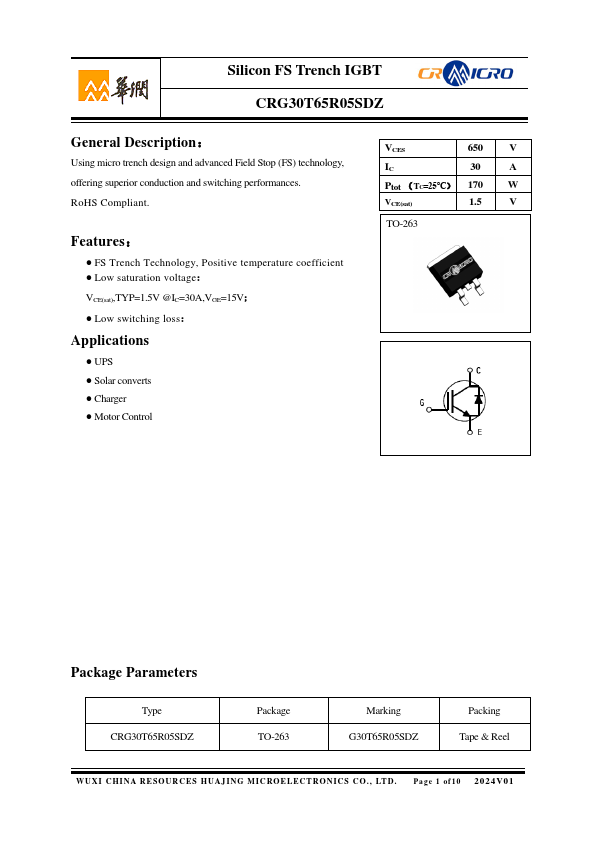

Preview of CRG30T65R05SDZ PDF

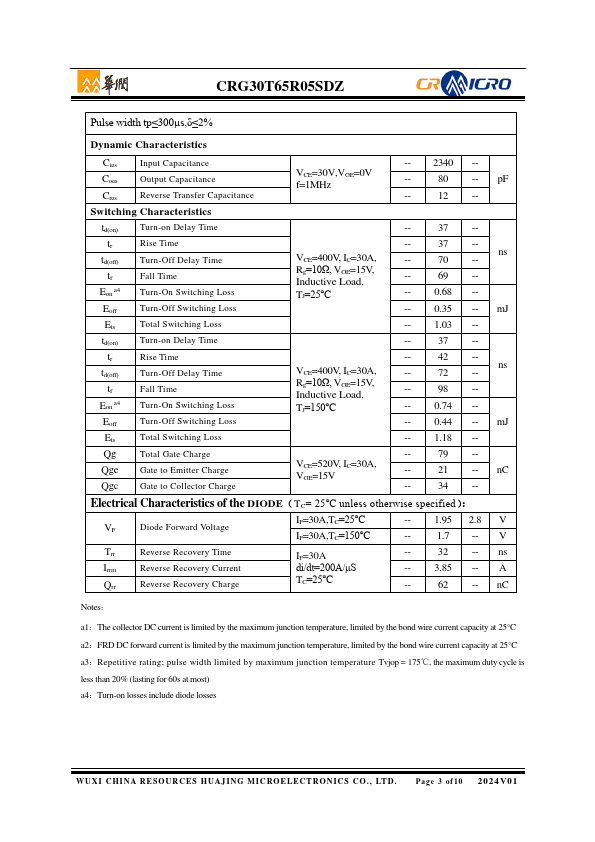

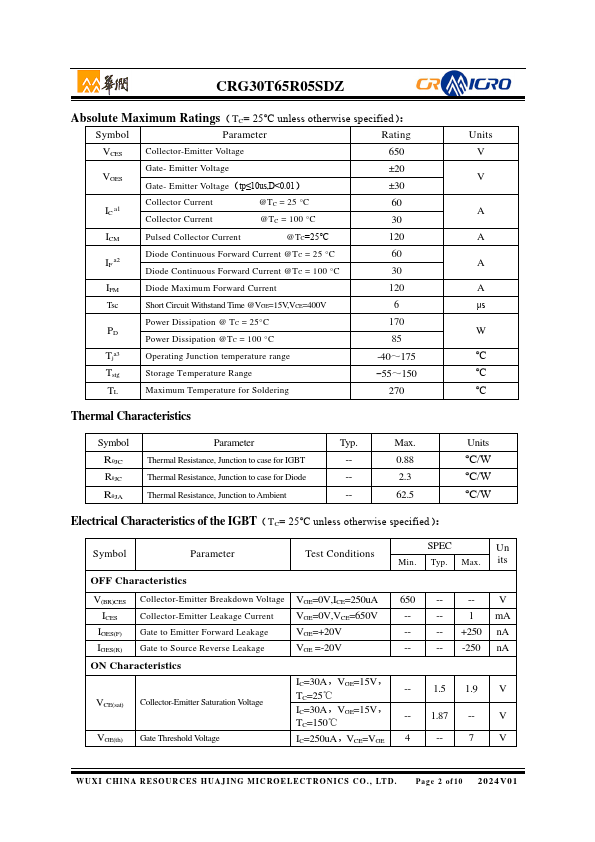

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CRG30T65R05SDZ
Manufacturer
CR Micro
File Size
1.25 MB
Datasheet
CRG30T65R05SDZ-CRMicro.pdf
Description
Silicon FS Trench IGBT
