CRG30T65RK5SDZ, Silicon FS Trench IGBT

Silicon FS Trench IGBT CRG30T65RK5SDZ General .
Using micro trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

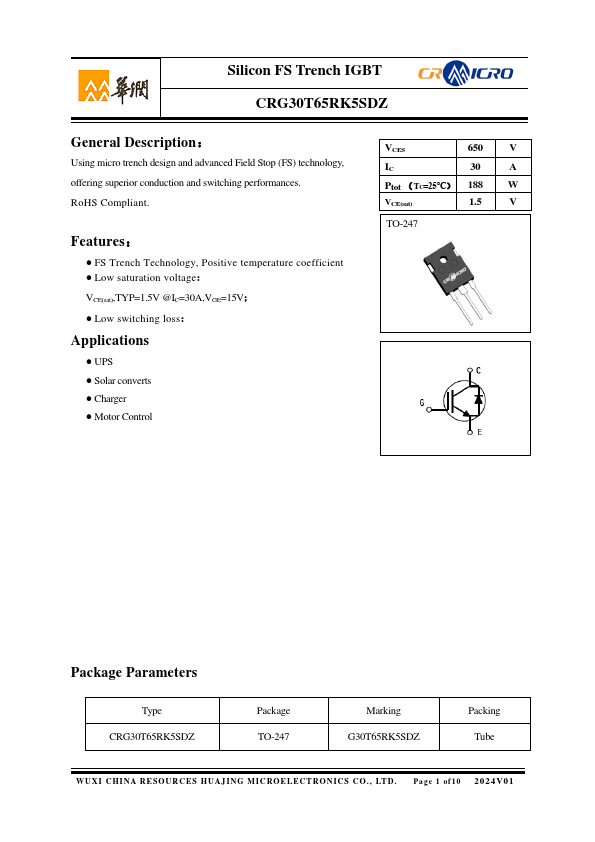

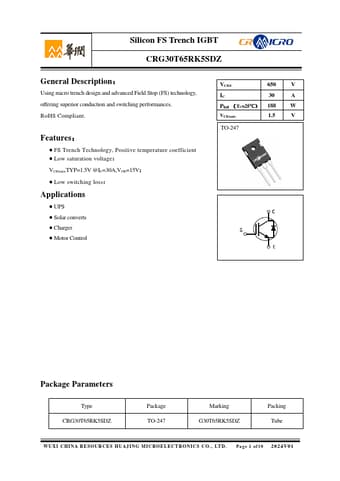

datasheet Preview Page 1 from Datasheet4u.com

CRG30T65RK5SDZ-CRMicro.pdf

CRG30T65RK5SDZ Datasheet Preview — Preview of CRG30T65RK5SDZ PDF

Datasheet Details

Part number:

CRG30T65RK5SDZ

Manufacturer:

CR Micro

File Size:

1.22 MB

Description:

Silicon FS Trench IGBT

Features

* FS Trench Technology, Positive temperature coefficient
* Low saturation voltage： VCE(sat),TYP=1.5V @IC=30A,VGE=15V；

Applications

* UPS
* Solar converts
* Charger
* Motor Control VCES 650 V IC 30 A Ptot （TC=25℃） 188 W VCE(sat) 1.5 V TO-247 Package Parameters Type CRG30T65RK5SDZ Package TO-247 Marking G30T65RK5SDZ Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. , LTD. Page 1 of 10 20
