CRG30T65R85SDZ, Silicon FS Trench IGBT

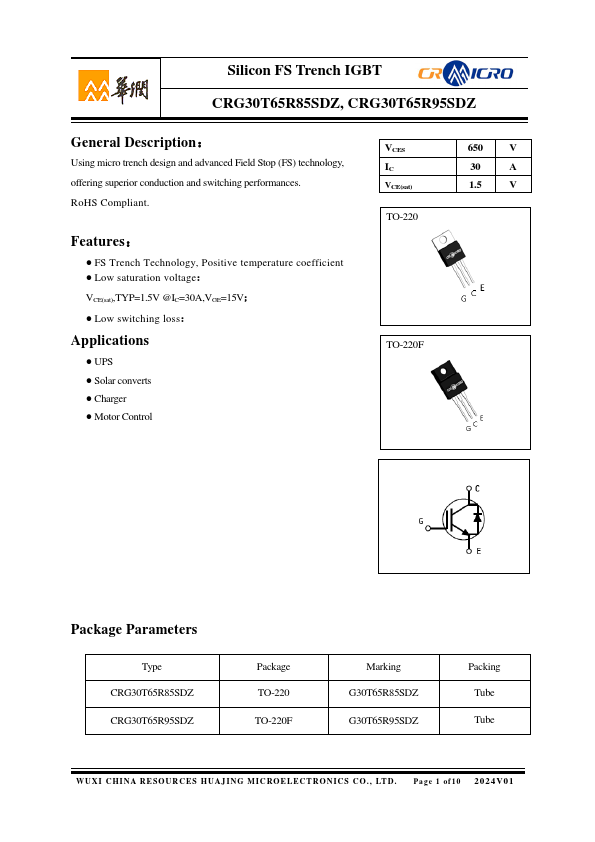

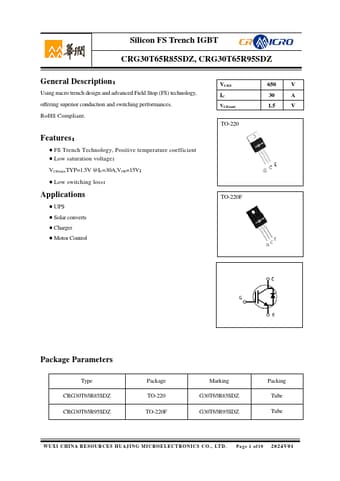

Silicon FS Trench IGBT CRG30T65R85SDZ, CRG30T65R95SDZ General .
Using micro trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

datasheet Preview Page 1 from Datasheet4u.com

CRG30T65R85SDZ-CRMicro.pdf

CRG30T65R85SDZ Datasheet Preview — Preview of CRG30T65R85SDZ PDF

Datasheet Details

Part number:

CRG30T65R85SDZ

Manufacturer:

CR Micro

File Size:

1.29 MB

Description:

Silicon FS Trench IGBT

Features

* FS Trench Technology, Positive temperature coefficient
* Low saturation voltage： VCE(sat),TYP=1.5V @IC=30A,VGE=15V；

Applications

* UPS
* Solar converts
* Charger
* Motor Control VCES IC VCE(sat) TO-220 TO-220F 650 V 30 A 1.5 V Package Parameters Type CRG30T65R85SDZ CRG30T65R95SDZ Package TO-220 TO-220F Marking G30T65R85SDZ G30T65R95SDZ Packing Tube Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS C
