CRSD110N06L2Q Datasheet - CR Micro

CRSD110N06L2Q, 60V SkyMOS2 N-MOSFET

() .

datasheet Preview Page 1 from Datasheet4u.com

CRSD110N06L2Q-CRMicro.pdf

CRSD110N06L2Q Datasheet Preview — Preview of CRSD110N06L2Q PDF

Datasheet Details

Part number:

CRSD110N06L2Q

Manufacturer:

CR Micro

File Size:

1.40 MB

Description:

60V SkyMOS2 N-MOSFET

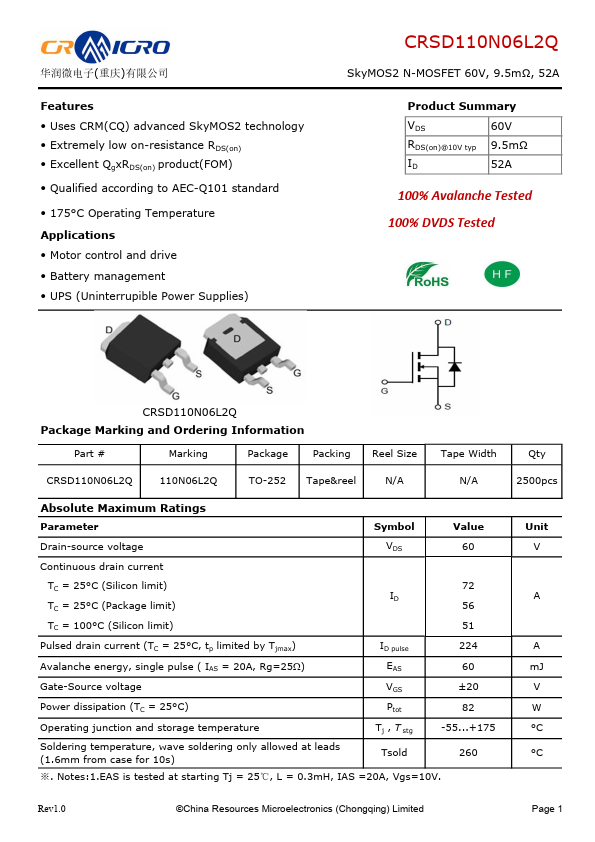

Features

* Uses CRM(CQ) advanced SkyMOS2 technology
* Extremely low on-resistance RDS(on)
* Excellent QgxRDS(on) product(FOM)
* Qualified according to AEC-Q101 standard

Applications

* Motor control and drive
* Battery management
* UPS (Uninterrupible Power Supplies) CRSD110N06L2Q SkyMOS2 N-MOSFET 60V, 9.5mΩ, 52A Product Summary VDS RDS(on)@10V typ ID 60V 9.5mΩ 52A 100% Avalanche Tested 100% DVDS Tested CRSD110N06L2Q Package Marking and Ordering Inf

CRSD110N06L2Q Distributors
