CRSS070N15NZ 150V SkyMOS1 N-MOSFET

CR Micro

Description

() CRSS070N15NZ SkyMOS1 N-MOSFET 150V, 5.9mΩ, 155A .

📥 Download Datasheet

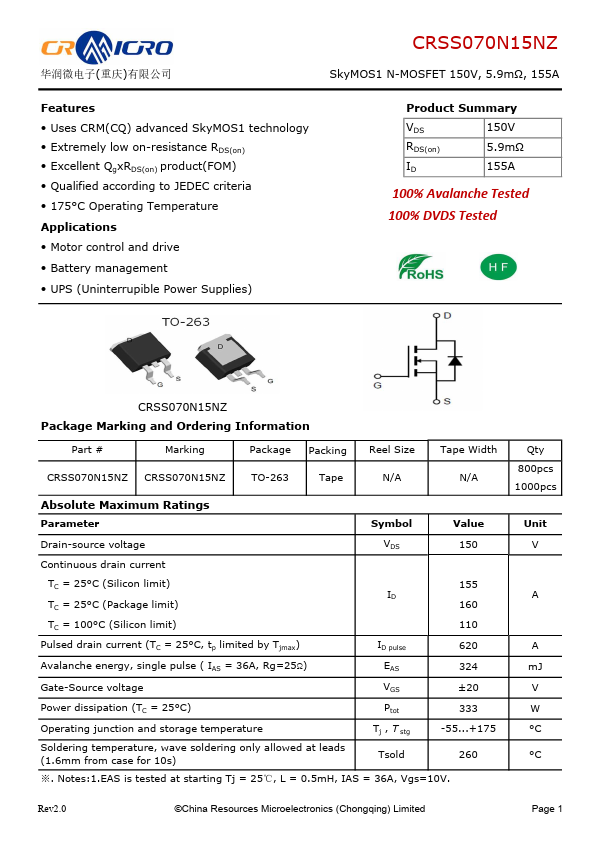

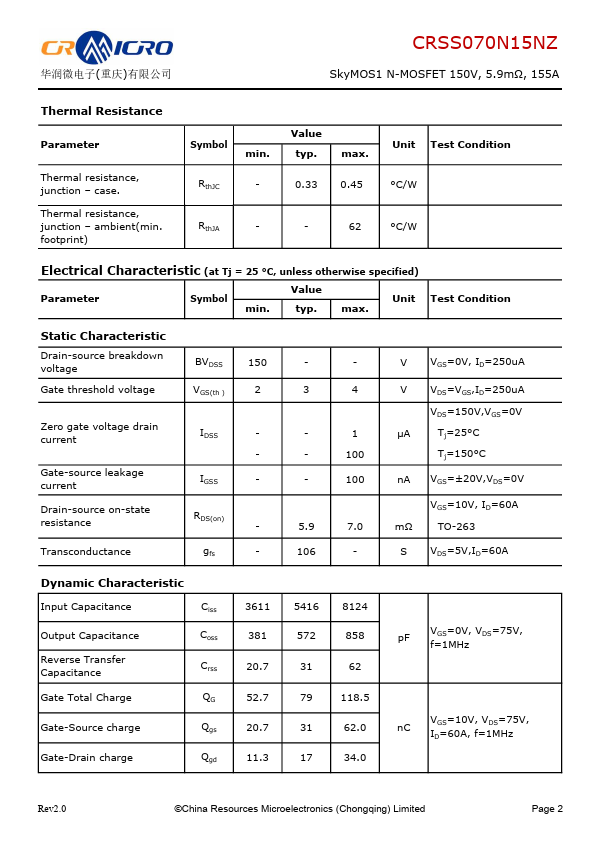

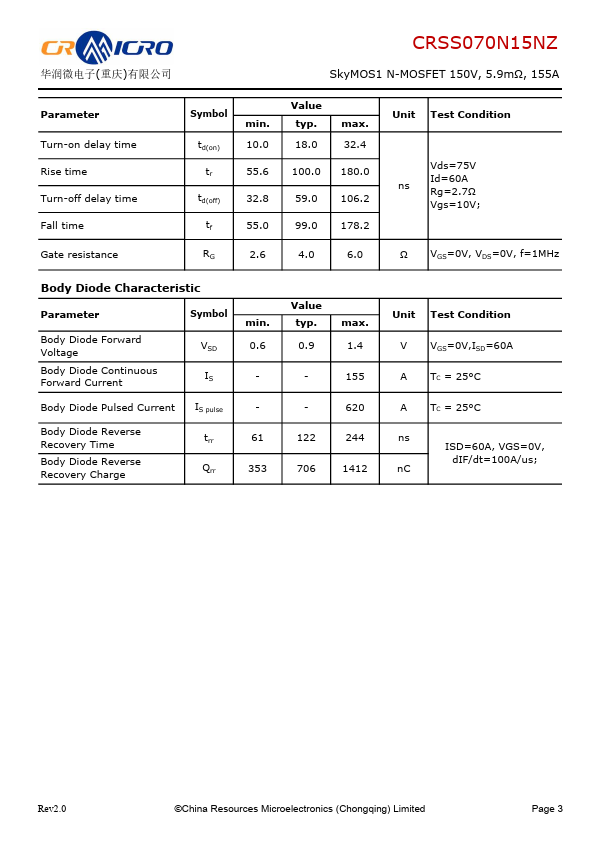

CRSS070N15NZ Datasheet Preview — Preview of CRSS070N15NZ PDF

Datasheet Specifications

Part number: CRSS070N15NZ
Manufacturer: CR Micro
File Size: 1.44 MB
Datasheet: CRSS070N15NZ-CRMicro.pdf
Description: 150V SkyMOS1 N-MOSFET

Features

* Uses CRM(CQ) advanced SkyMOS1 technology
* Extremely low on-resistance RDS(on)
* Excellent QgxRDS(on) product(FOM)
* Qualified according to JEDEC criteria

Applications

* Motor control and drive
* Battery management
* UPS (Uninterrupible Power Supplies) Product Summary VDS RDS(on) ID 150V 5.9mΩ 155A 100% Avalanche Tested 100% DVDS Tested CRSS070N15NZ Package Marking and Ordering Information Part # Marking Package Packing Reel Size Ta

CRSS070N15NZ Distributors
