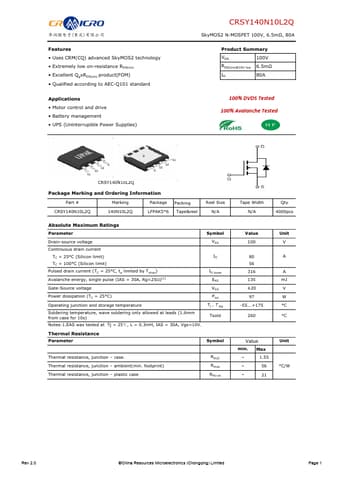

CRSY140N10L2Q Datasheet - CR Micro

CRSY140N10L2Q, 100V SkyMOS2 N-MOSFET

() .

datasheet Preview Page 1 from Datasheet4u.com

CRSY140N10L2Q-CRMicro.pdf

CRSY140N10L2Q Datasheet Preview — Preview of CRSY140N10L2Q PDF

Datasheet Details

Part number:

CRSY140N10L2Q

Manufacturer:

CR Micro

File Size:

1.52 MB

Description:

100V SkyMOS2 N-MOSFET

Features

* Uses CRM(CQ) advanced SkyMOS2 technology
* Extremely low on-resistance RDS(on)
* Excellent QgxRDS(on) product(FOM)

Applications

* Motor control and drive
* Battery management
* UPS (Uninterrupible Power Supplies) CRSY140N10L2Q SkyMOS2 N-MOSFET 100V, 6.5mΩ, 80A Product Summary VDS 100V RDS(on)@10V typ 6.5mΩ ID 80A 100% DVDS Tested 100% Avalanche Tested G S3 S2 S1 D S1 S2 S3 G CRSY140N10L2Q
