CRSZ038N14N3Z 135V SkyMOS3 N-MOSFET

CR Micro

Description

() CRSZ038N14N3Z SkyMOS3 N-MOSFET 135V, 2.9mΩ, 190A .

📥 Download Datasheet

CRSZ038N14N3Z Datasheet Preview — Preview of CRSZ038N14N3Z PDF

Datasheet Specifications

Part number: CRSZ038N14N3Z
Manufacturer: CR Micro
File Size: 1.13 MB
Datasheet: CRSZ038N14N3Z-CRMicro.pdf
Description: 135V SkyMOS3 N-MOSFET

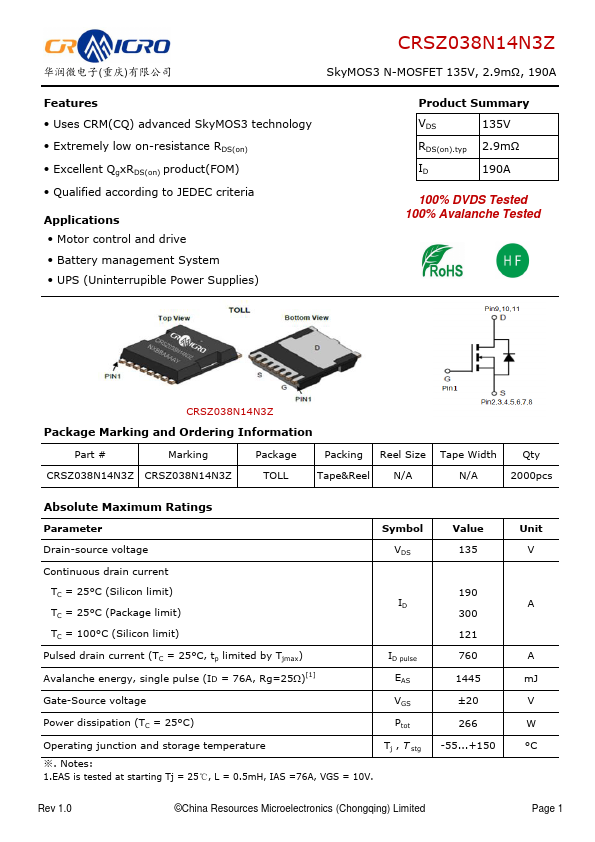

Features

* Uses CRM(CQ) advanced SkyMOS3 technology
* Extremely low on-resistance RDS(on)
* Excellent QgxRDS(on) product(FOM)

Applications

* Motor control and drive
* Battery management System
* UPS (Uninterrupible Power Supplies) Product Summary VDS 135V RDS(on). typ 2.9mΩ ID 190A 100% DVDS Tested 100% Avalanche Tested CRSZ038N14N3Z Package Marking and Ordering Information Part # Marking Package Pac
