CS16N65FA9H Datasheet - CR Micro

CS16N65FA9H Silicon N-Channel Power MOSFET

CS16N65F A9H, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization .

CS16N65FA9H Features

* l Fast Switching l Low ON Resistance(Rdson≤0.55Ω) l Low Gate Charge (Typical Data:54nC) l Low Reverse transfer capacitances(Typical: 18.5pF) l 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specified）： Symbol Pa

CS16N65FA9H-CRMicro.pdf

Preview of CS16N65FA9H PDF

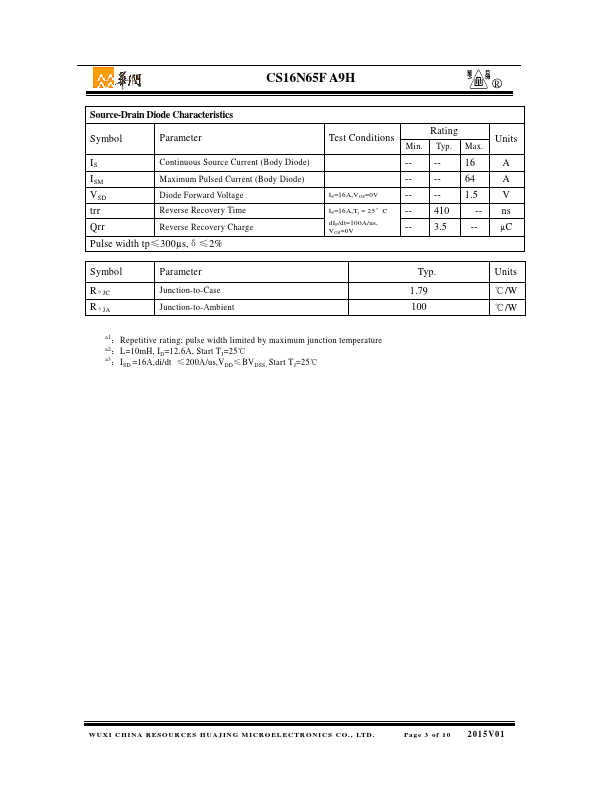

CS16N65FA9H Datasheet Preview Page 2 CS16N65FA9H Datasheet Preview Page 3

Datasheet Details

Part number:

CS16N65FA9H

Manufacturer:

CR Micro

File Size:

307.26 KB

Description:

Silicon n-channel power mosfet.
